5-Axis / Multi-Axis Machining

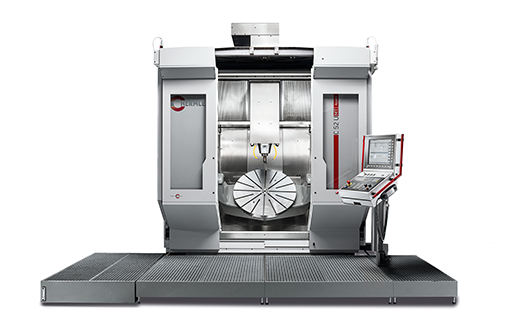

C 52 U MT | Universal Machining Center

FOR PARTS UP TO 2000 KG

Traverse path: 1000 x 1100 x 750 mm
Body: dia. 1000 / H 810
Collision circle: dia. 1290 mm
Max. vertical table clearance: 950 mm

Speed: 14000 1/min
Rapid traverse linaer: 60-60-55 m/min.
swivelling rotary table: dia. 1150 x 900 mm
Table loading max.: 2000 kg

The C 52 is equipped with compact spindles. All spindles can be replaced quickly and easily in case of failure. With the different speed ranges and tool holding fixtures the tool spindles are suitable for a wide variety of machining tasks.

Automatic cabin door, bed flushing, BDE-signal, electrical heat compensation, emulsion mist extraction system, precision packages, height-adjustable control panel with swivelling 19 ″ touch screen, rotating visibility improvement unit, cooling unit, chip conveyor, tool breakage monitoring and measurement.

Hermle manufactures many components using lightweight construction and mineral casting technology. The high degree of own production, local suppliers and components with high efficiency factors also promote energy efficiency. Energy recuperation, high-quality servo drives and the legendary long service lives are all proof of the same high standards during actual operation.

HEIDENHAIN
They feature a variety of configurations and functionalities - including tools for improving precision for rotary and swivel operations, shell transformation and transparent tool management. Options such as Dynamic Efficiency, Dynamic Precision or the Kinematic Opt. software also serve to widen the range of functions.

WITH TOOL CHANGER AND SWIVELING CONTROL PANEL
The pick-up tool magazine of the C 52 U MT is integrated into the machine bed, making for very good accessibility. There are 60 magazine pockets which can be extended to 325 by means of additional magazines. The maximum tool weight is 30 kg and the maximum tool length is 500 mm. The tool magazine of this milling/turning centre is rounded off by the swivelling control panel and covers for the tool holding fixture.

DETAILS: EVERYTHING WELL THOUGHT-THROUGH
From the comprehensive fluid technology to the optimized chip management system and a range of cooling lubricant units to the hinged belt conveyor: This High-Performance Line model has a number of highlights to offer, e.g. the right chip disposal equipment for removing all types of chip from the working area.
