5-Axis / Multi-Axis Machining

C52UMT | Universal Machining Center

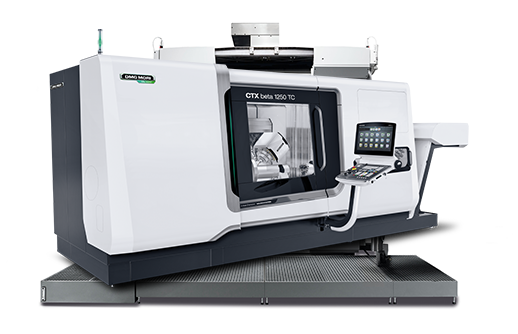

Complex turning and milling operations with ultra-compact turning/milling spindle
Turning and milling spindle compactMASTER with 12,000 rpm, 29.5 hp and 88.5 ft lb

• ±4.7 in. Y-stroke for external machining
• Swivel range of B-axis ±110° for maximum flexibility

Tool magazine as a chain magazine for shorter set-up and idle times

• Chain magazine with 48 or 80 stations as option
• Tools up to 5.7 in length and ∅4.7 in

6-sided complete machining by main spindle up to 516.3 ft lb and optional counter spindle

• Integrated spindle drives with up to 516.3 ft lb for maximum cutting performance
• Counter spindles up to 14.2 ft lb and 2.6 in bar capacity as option

Accuracy

• Precision in μm range
• Positioning accuracy up to <6 μm and repeatability up to <0.1 μin
• Linear scales in the linear axes of the traveling column (X1 / Y1 / Z1)
• Liquid-cooled spindles and cooling of the X- / Y- / Z-motors
